Laboratory Batch Setup
Simplified Strain Selection and Hatchery Operations
The Laboratory Batch Setup is designed for compact, precision-driven seaweed cultivation without the complexity of recirculation systems. This setup is ideal for hatchery activities focused on strain selection, spore induction, gametophyte maintenance, and batch-based experimental trials.
Description
This stand-alone unit offers controlled conditions for early-stage cultivation and research, using isolated vessels for batch processes:
12 bioreactors, each with a 4-liter capacity (total: 48 liters)
Independent batch operation for each reactor – allows for tight control of media composition
Adjustable air flow control ensuring optimal gas exchange with easy adjustments
Light control ensuring optimal light intensity and cycle control
User-friendly design for high-precision data collection, minimal human error, and standardized, time efficient processes
Optional add-ons include:
Custom lighting modules for spectral control
Light isolation via a complete screening of each shelf-blocking contamination of external light
Relevant supplementary options, including a unique pressing unit, starter kits, and cleaning technology
With a simplified plug-and-play design, this setup is fast to install, easy to use, and highly suitable for testing multiple strains or parameters in parallel.
Your Benefits
The Laboratory Batch Setup offers maximum experimental flexibility with minimal setup complexity:
Cost-efficient entry point for hatchery activities and seaweed R&D
Perfect for small-scale trials and early-stage development
Ideal for high-replication studies where control and isolation are key
Easy harvesting with our unique harvesting modules
Ideal for:
✓ Strain selection
✓ Gametophyte maintenance
✓ Sporulation induction
✓ Batch cultivation
Best suited for:
Research
Seaweed Hatchery
Why choose it:
Plug-and-play setup – fast and intuitive installation
Perfect for small-scale trials and early-stage development
Maximizes value while minimizing time and cost
From Sporulation to Controlled and Stable Algae Research
The Laboratory Batch Setup serves as the central platform for controlled biomass cultivation, experimental trials, and protocol development. It integrates naturally with the Incubator Unit, which is used to induce sporulation and supply reproductive material to the batch system at an early stage. This makes the Batch Setup an ideal starting point for establishing stable cultures, optimizing growth conditions, and validating processes before further scaling with ValueFarm Containers and Towers.
Specifications
Technical Specifications
Power Supply: Universal power supply 220 V, 50 Hz
Max Power Usage: 150W
System size: 2105 x 964 x 450 mm (H x W x D)
Bioreactors: H: 300 mm, Ø: 150 mm,
Functional volume: 4 L
Net Weight: 100 kg (150 kg with water)
[1 ] Bioreactors
[2] Easy harvesting module
[3] Air flow control
[4] Light control
[5] Unique shelf systems with drains
[6] Potentional Light Screening
Laboratory Batch Setup in use
The batch setup is used for cultivation trials and controlled biological testing.
It allows clear observation of growth responses and process behaviour over defined periods.
Results from batch trials are used to evaluate cultivation strategies and support further development.
Other Products
-
![technical image of incubator unit from different angles]()
Incubator Unit
For seaweed cultivation and hatchery activities.
Ideal for single strain testing, spore induction and public engagement activities -
![technical image of purehatch nursery, partially see-through with tubes inside]()
PUREHATCH Nursery
Pre-deployment system for seaweed cultivation. Optimizes early stage growth for a higher yield and planting effeciency
-

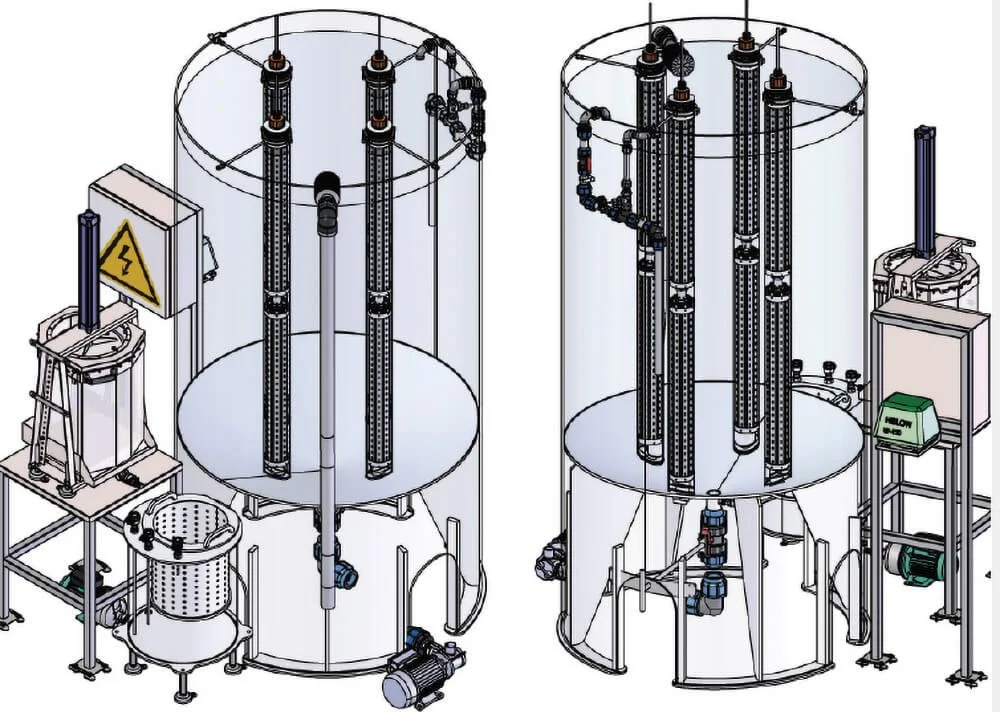

![technical image of valuefarm towers, 3D showing different parts of the system]()
VALUEFARM Towers
Space efficient seaweed production at industrial scale. Automated, controlled and ideal for large scale producers and aquaculture integrations
-

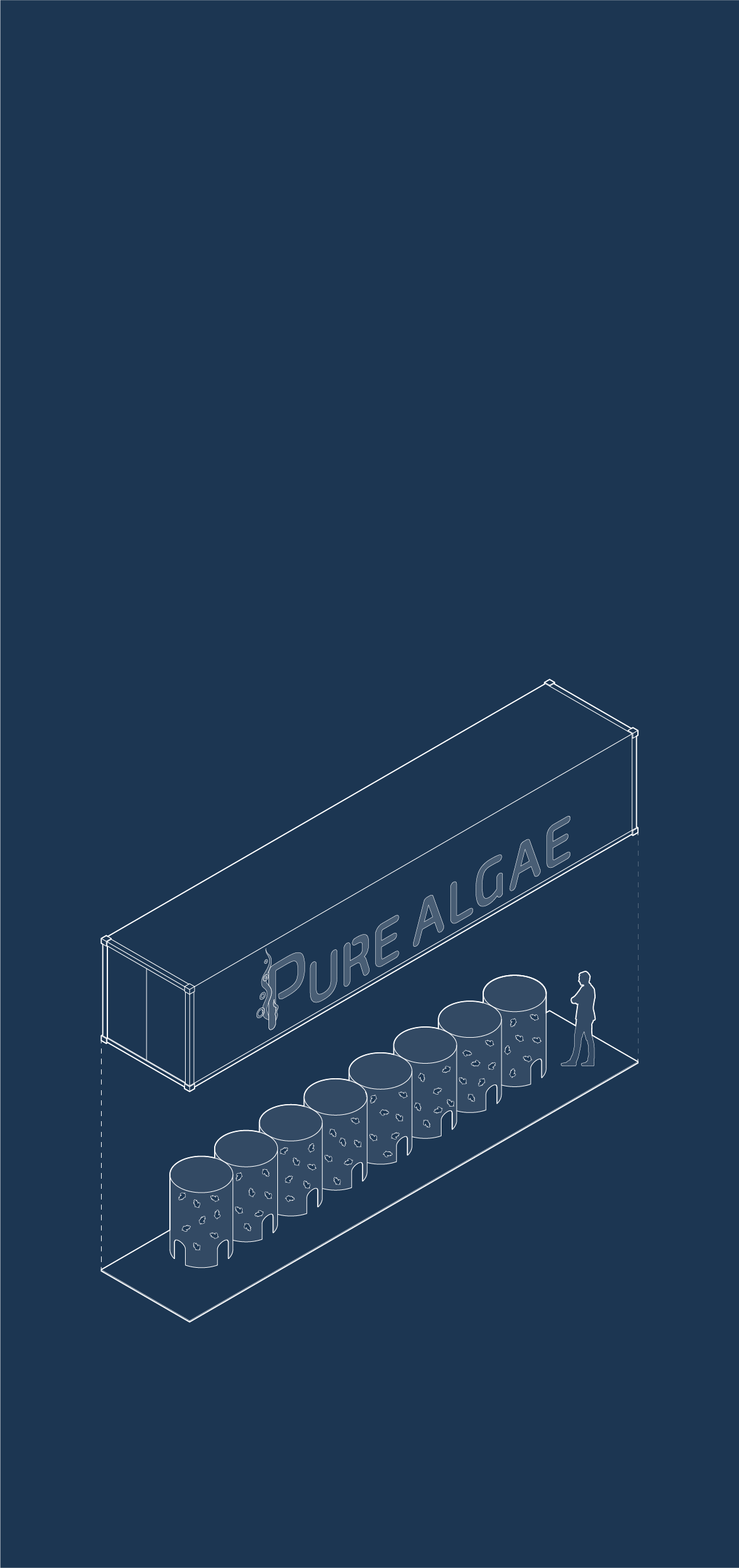

![simplified illustration of the valuefarm containers, showcasing setup inside and a person for scale]()
VALUEFARM Containers
Compact seaweed cultivation system for optimal growth conditions. Ideal for research and commercial production
-
![technical image of laboratory setup, showing specifications and measurements]()
Laboratory Setup
Small scale controlled seaweed cultivation. Ideal for conducting strain selection or optimizing growth conditions before upscaling
-

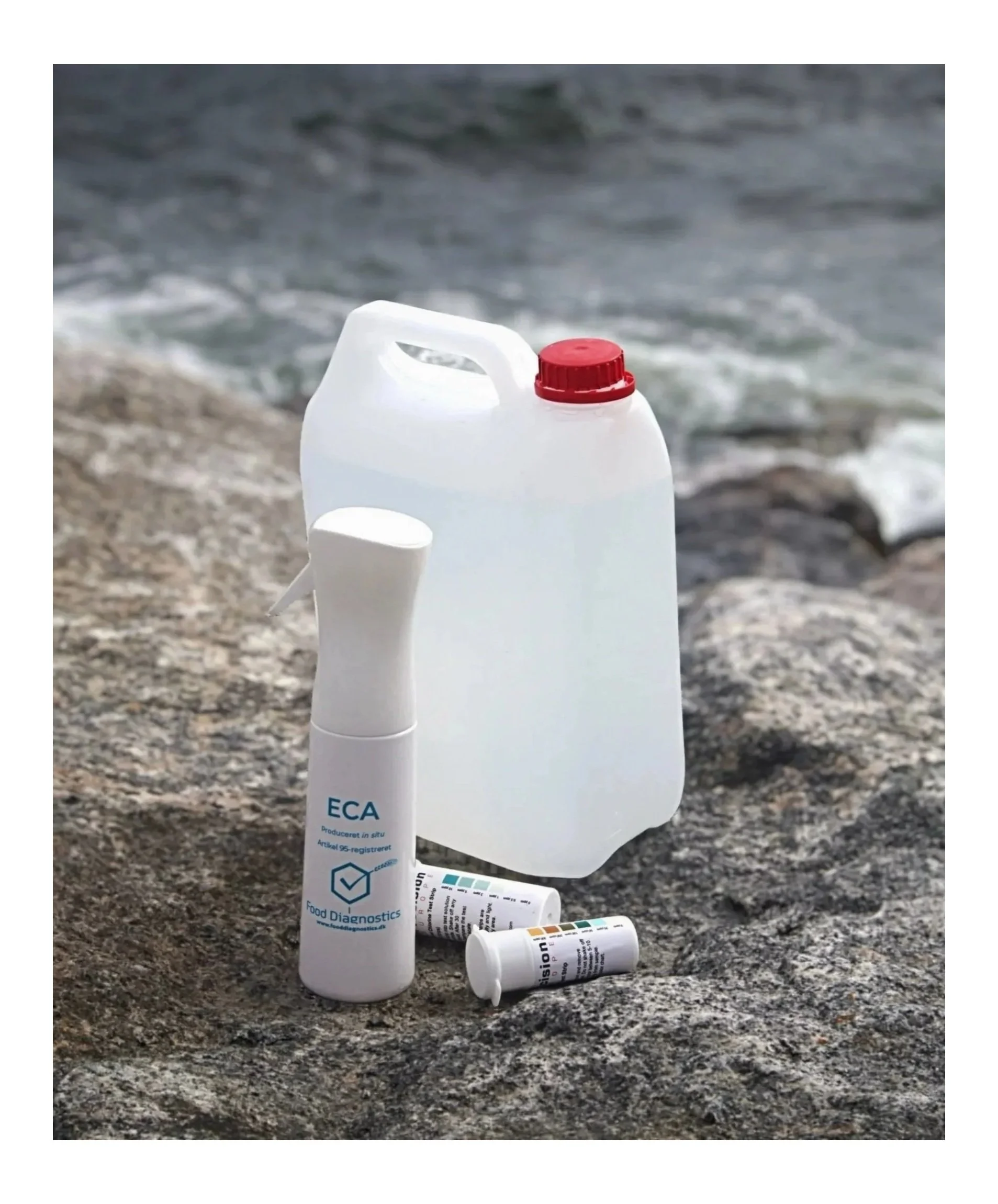

![ECA disinfection solution bottle and spray bottle standing on rocks by the ocean]()
